    Printing Grade Polycarbonate Film The Ultimate Solution for Versatile Applications

    Ask Lasest Price
    Brand Name : TOPPC
    Model Number : TOPPC10
    Price : 2.0USD-8.8USD per sqaure meters
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000PCS per Month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Printing Grade Polycarbonate Film The Ultimate Solution for Versatile Applications

    Printing grade polycarbonate film is a versatile and high-performance thermoplastic material used extensively in various industries for its excellent balance of properties. Here are specification and some key features and applications:


    The specifications of printing grade polycarbonate film:

    PropertySpecification
    Thickness0.2 mm to 1.5 mm
    Transparency85% to 92% light transmission
    HazeLess than 1.0%
    Size915mm*1820mm
    Impact Strength600 to 850 J/m (Notched Izod)
    Tensile Strength60 to 70 MPa
    Elongation at Break100% to 150%
    Heat ResistanceContinuous use temperature up to 120°C
    Melting Point220°C to 230°C
    Chemical ResistanceResistant to many oils, solvents, and chemicals
    Electrical InsulationDielectric strength: 15 to 30 kV/mm
    Surface Energy38 to 42 dyne/cm (can be enhanced with surface treatment)
    Moisture Absorption0.15% to 0.30% (24 hours at 23°C)
    UV ResistanceCan be enhanced with UV protective coating
    Printing CompatibilityScreen Printing, Digital Printing, Thermal Transfer

    Key Features:

    1. Optical Clarity:

      • High transparency with excellent light transmission.
      • Low haze and high gloss finish.
    2. Durability:

      • High impact resistance.
      • Good dimensional stability.
      • Resistant to cracking and breaking.
    3. Thermal Resistance:

      • Wide operating temperature range.
      • Good heat resistance, making it suitable for various printing processes.
    4. Chemical Resistance:

      • Resistant to many chemicals, oils, and solvents.
    5. Electrical Properties:

      • Good electrical insulation properties.
    6. Surface Quality:

      • Smooth and uniform surface, ideal for printing.

    Applications:

    1. Graphics and Printing:

      • Used in overlays, labels, nameplates, and control panels.
      • Suitable for screen printing, digital printing, and thermal transfer printing.
    2. Electronics:

      • Used in membrane switches, touch screens, and displays.
    3. Automotive:

      • Instrument panels and interior components.
    4. Industrial Applications:

      • Used in control panels, machine covers, and protective barriers.

    Printing Techniques:

    1. Screen Printing:

      • Popular for its durability and vibrant colors.
      • Suitable for high-volume production runs.
    2. Digital Printing:

      • Offers high-resolution prints.
      • Ideal for short runs and custom designs.
    3. Thermal Transfer Printing:

      • Provides durable and resistant prints.
      • Commonly used for barcodes and labels.

    Considerations:

    • Ink Adhesion: Polycarbonate film requires proper surface treatment to enhance ink adhesion. Pre-treatment methods like corona treatment or applying an adhesion promoter are often used.
    • Compatibility: Ensure that the inks and printing methods are compatible with polycarbonate to avoid issues like smudging or poor adhesion.
    • Environmental Factors: Consider the operating environment, as exposure to UV light or harsh chemicals can affect the longevity of printed graphics.

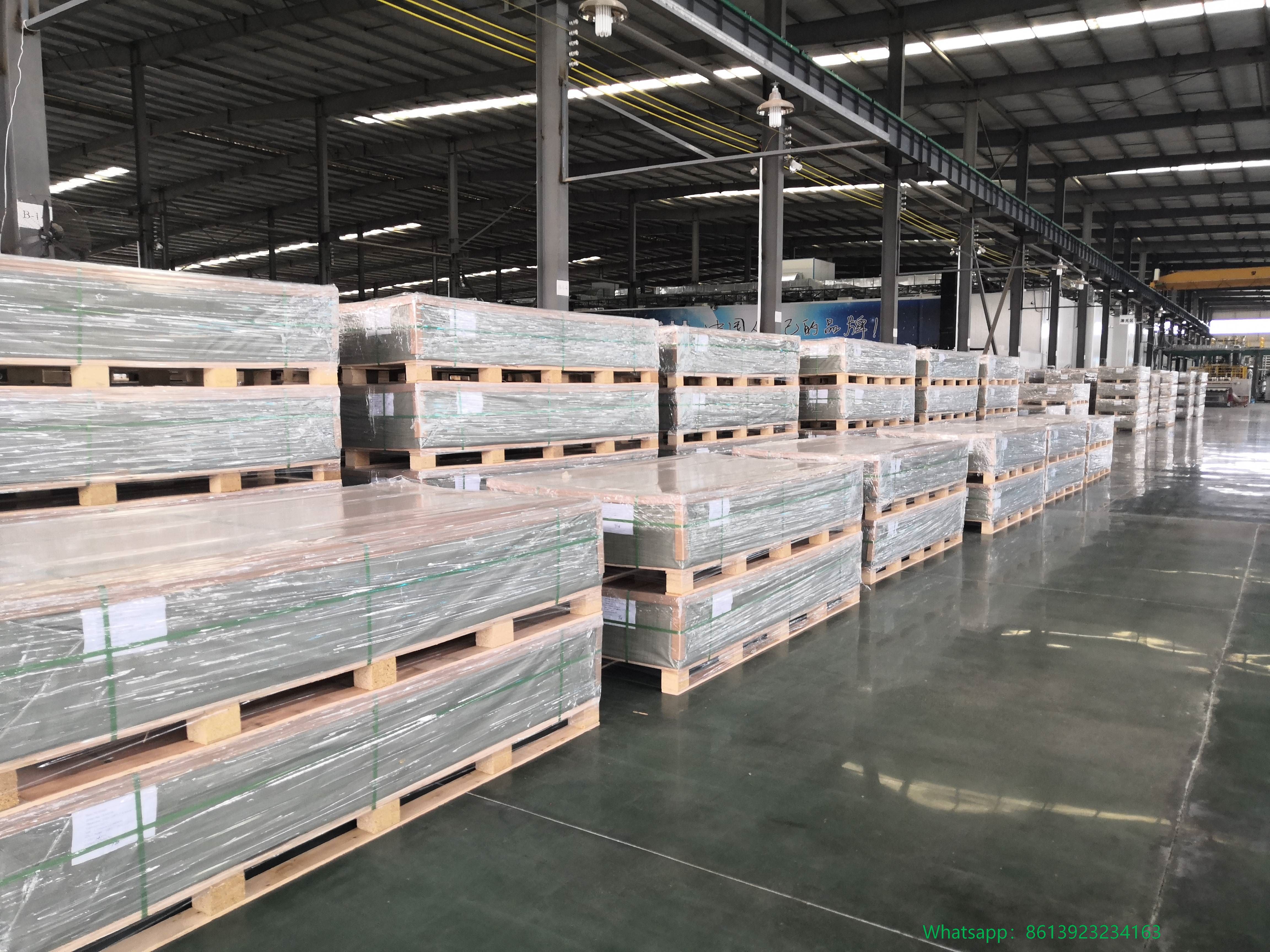

    Printing polycarbonate film's Producstion and Package and Delivery
